i would try simple things first: 1) disable scrub/deepscrub and re-run the test.  if this was the cause, you can re-enable scrub again but lower the scrub load 2) disable pg auto scaling, manually set the pg_num yourself on new pool and re-run test. /maged On 25/02/2026 10:47, Lina SADI via ceph-users wrote:

Hello Ceph users,

I am currently running performance investigations on a small ARM-based Ceph cluster (Raspberry Pi + NVMe), and I would really appreciate feedback from experienced users or developers. We are trying to understand a non-trivial behavior that appears systematic rather than random.

Below is a technical summary of our setup and methodology. I am attaching the figures directly so that the detailed interpretation can be derived visually from the data.

_CLUSTER ARCHITECTURE _Hardware:

*

3× Raspberry Pi storage nodes

*

Each node equipped with an identical 512 GB NVMe device

*

Nodes interconnected through a 1 Gb/s Ethernet switch

*

1 additional Raspberry Pi acting as a client on the same network

Software topology (Ceph Pacific 16.2.15 – default configuration):

*

Node 1 (umbriel): MON + MGR + OSD

*

Node 2 (elara): MON + MDS + OSD

*

Node 3 (kerberos): MON + OSD

*

Client node: continuous camera ingestion pipeline writing frames into a default CephFS pool .

_EXPERIMENT OBJECTIVE _Our goal is to establish a stable performance baseline before injecting failure scenarios (e.g., verifying whether images are lost during Ceph faults). However, even with identical workloads on an empty cluster, the system consistently evolves through several distinct performance phases.

_WORKLOAD DESCRIPTION _The workload consists of a simple 2-hour execution of the camera program (~42 FPS) with a frame size of 512 KB:

Collected information:

*

Ceph metrics: cluster health, PG state, and OSD performance (commit/apply latency)

*

System metrics on all nodes: CPU, memory, disk and network usage, as well as temperature and Raspberry Pi throttling flags

*

Client metrics: latency and throughput

Metrics were collected in parallel with offline parsing to minimize perturbation.

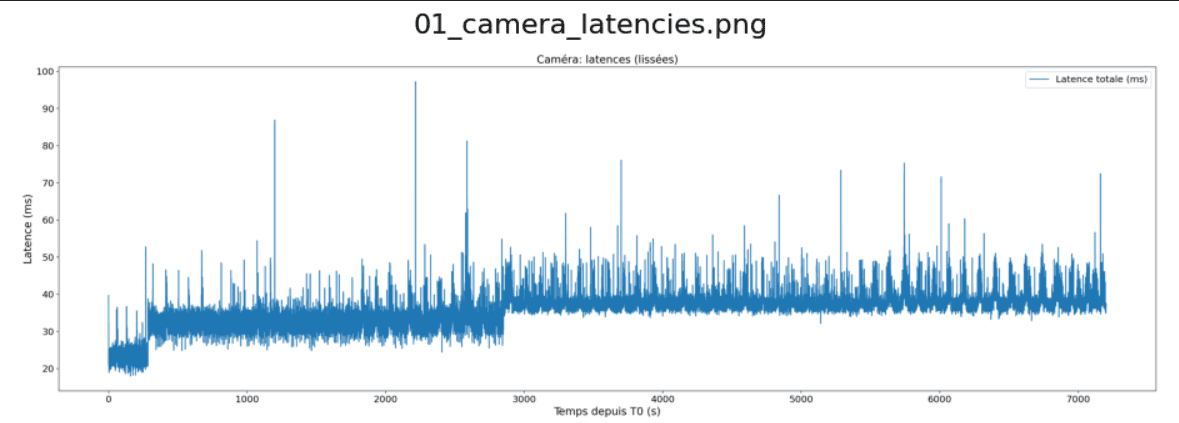

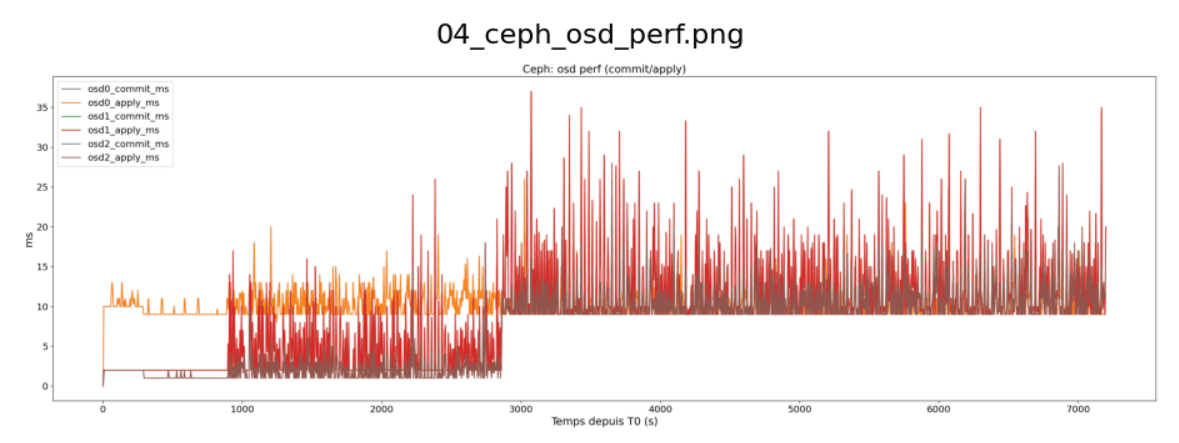

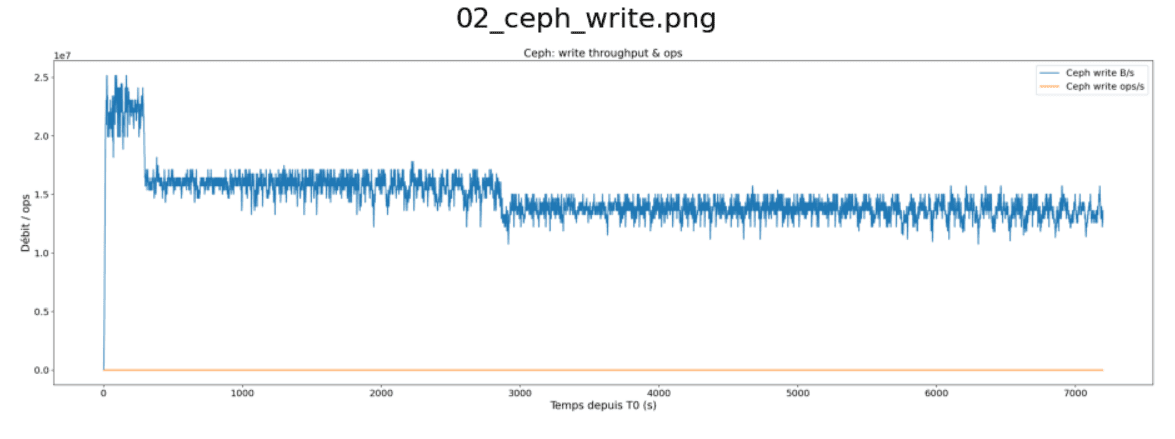

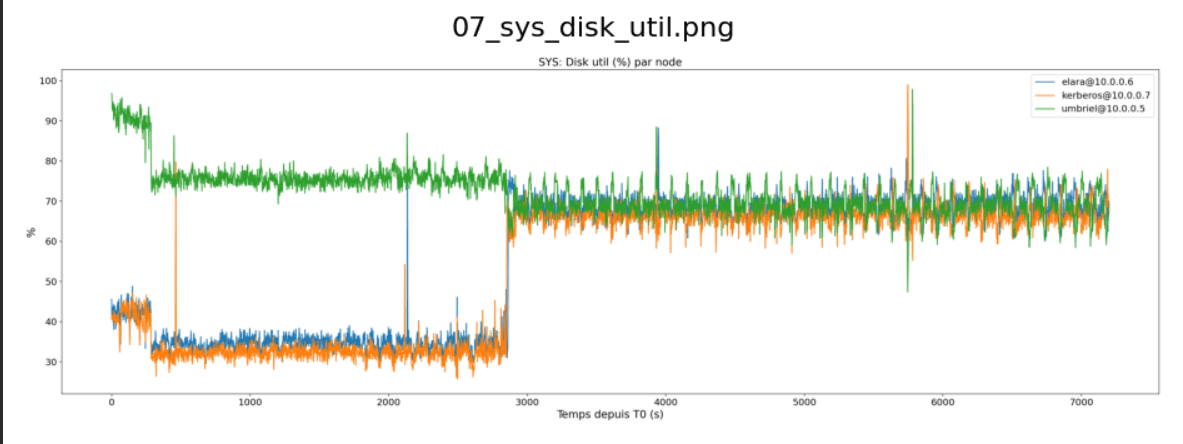

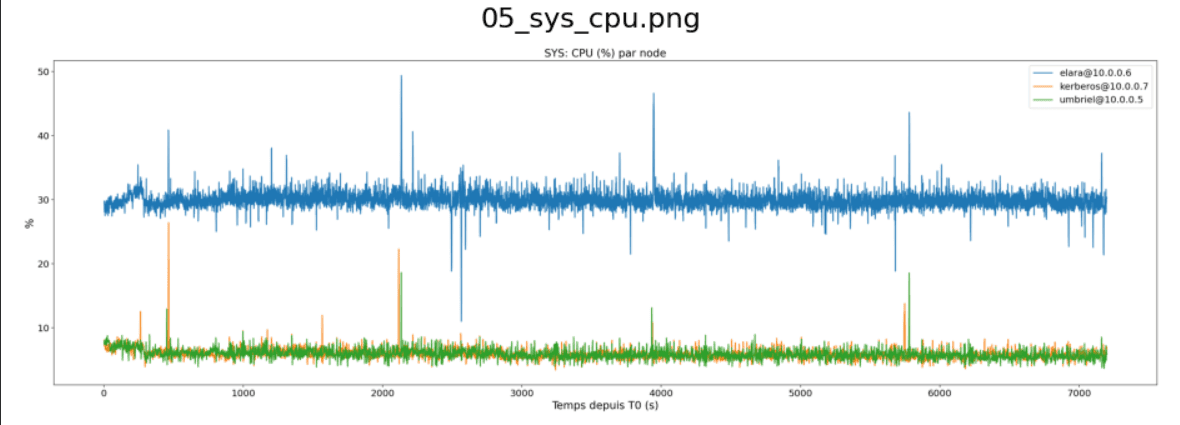

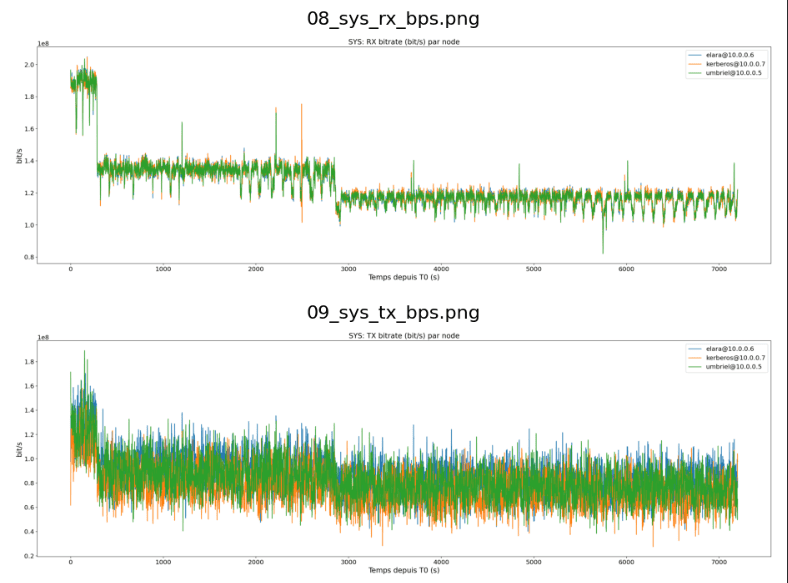

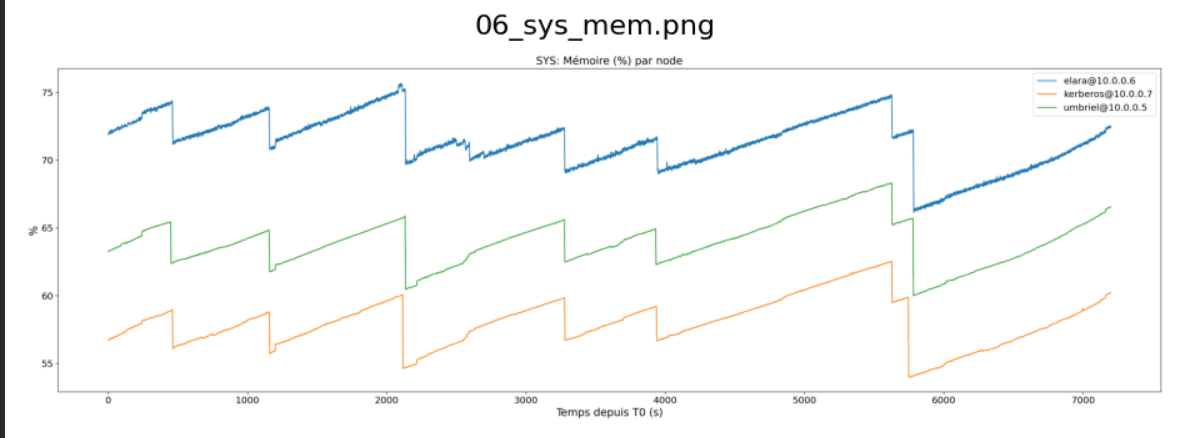

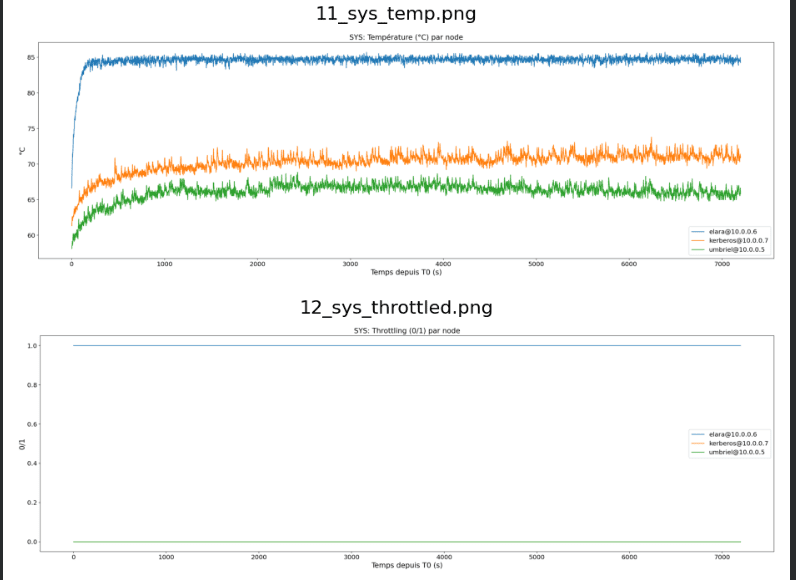

_OBSERVATIONS (see attached figures) _Across multiple executions, performance does not drift gradually but instead evolves through three clear plateaus affecting client latency, client throughput, OSD commit/apply latency, and network traffic, while the cluster remains HEALTH_OK. CPU usage stays stable, and memory shows periodic cache-related fluctuations. *The most notable behavior appears at the disk level*: one NVMe starts with much higher utilization (~95%) while the others remain around ~40%, then activity progressively converges until all OSDs stabilize at similar levels. DVFS and thermal throttling do not explain the phenomenon, as running experiments with throttling already active still produces the same three phases.

Our main questions are therefore:

*

*What internal Ceph mechanism could explain these three performance phases?*

*

*Why does one OSD initially receive more load before balancing occurs?*

Any pointers on relevant metrics, configuration aspects, or known behaviors on small ARM-based clusters would be extremely valuable.

Thank you very much for your time and insights.

Screenshot 2026-02-23 164425.png Screenshot 2026-02-23 164440.pngScreenshot 2026-02-24 112112.png Screenshot 2026-02-23 164517.png Screenshot 2026-02-23 164536.png Screenshot 2026-02-23 164552.png Screenshot 2026-02-23 164602.png Screenshot 2026-02-23 164624.png Screenshot 2026-02-23 164658.png
