cephadm grafana per host certificate
Hi *, I've set up grafana, prometheus and node-exporter on an adopted cluster (currently running 16.2.10) and was trying to enable ssl for grafana. As stated in the docs [1] there's a way to configure individual certs and keys per host: ceph config-key set mgr/cephadm/{hostname}/grafana_key -i $PWD/key.pem ceph config-key set mgr/cephadm/{hostname}/grafana_crt -i $PWD/certificate.pem So I did that, then ran 'ceph orch reconfig grafana' but I still get a bad cert error message: Apr 20 10:21:19 ceph01 conmon[3772491]: server.go:3160: http: TLS handshake error from <IP>:46084: remote error: tls: bad certificate It seems like the cephadm generated cert/key pair (mgr/cephadm/grafana_key; mgr/cephadm/grafana_crt) supersedes the per-host certs, and even after removing the generated cert/key (and then reconfigure) cephadm regenerates a them and leaves me with the same problem. Is this a known issue and what would be the fix? I didn't find anything on tracker, but I might have missed it. To confirm that my custom certs actually work I replaced the general cert with my custom cert and the error doesn't appear, I can see the grafana graphs in the dashboard. I could leave it like this, but if grafana would failover it wouldn't work anymore, of course. Any hints are greatly appreciated. Thanks, Eugen [1] https://docs.ceph.com/en/latest/cephadm/services/monitoring/#configuring-ssl...

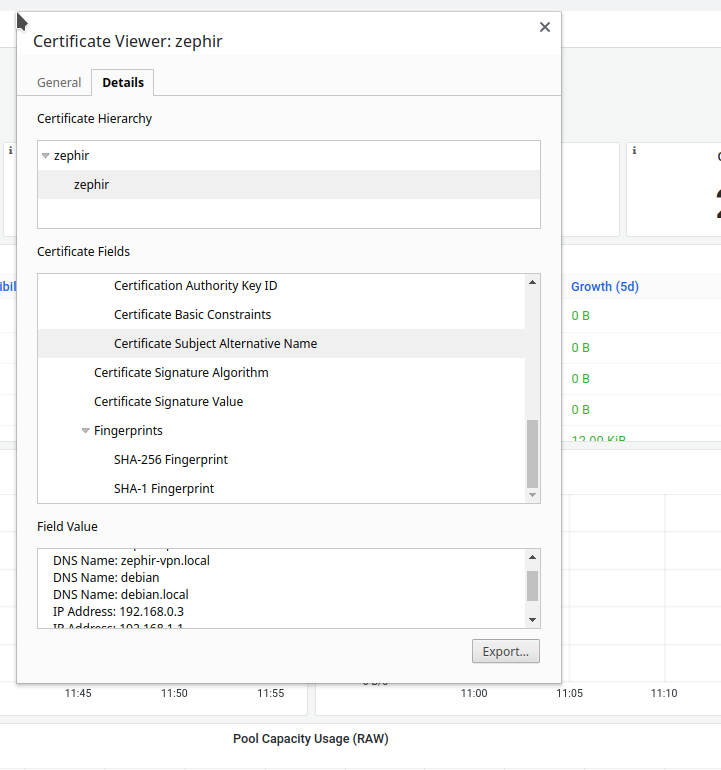

Hi Eugen, I've created a certificate with subject alternative names, so the certificate is valid on each node of the cluster. [image: image.png] Cheers Reto Am Do., 20. Apr. 2023 um 11:42 Uhr schrieb Eugen Block <eblock@nde.ag>:
Hi *,
I've set up grafana, prometheus and node-exporter on an adopted cluster (currently running 16.2.10) and was trying to enable ssl for grafana. As stated in the docs [1] there's a way to configure individual certs and keys per host:
ceph config-key set mgr/cephadm/{hostname}/grafana_key -i $PWD/key.pem ceph config-key set mgr/cephadm/{hostname}/grafana_crt -i $PWD/certificate.pem
So I did that, then ran 'ceph orch reconfig grafana' but I still get a bad cert error message:
Apr 20 10:21:19 ceph01 conmon[3772491]: server.go:3160: http: TLS handshake error from <IP>:46084: remote error: tls: bad certificate
It seems like the cephadm generated cert/key pair (mgr/cephadm/grafana_key; mgr/cephadm/grafana_crt) supersedes the per-host certs, and even after removing the generated cert/key (and then reconfigure) cephadm regenerates a them and leaves me with the same problem. Is this a known issue and what would be the fix? I didn't find anything on tracker, but I might have missed it. To confirm that my custom certs actually work I replaced the general cert with my custom cert and the error doesn't appear, I can see the grafana graphs in the dashboard. I could leave it like this, but if grafana would failover it wouldn't work anymore, of course. Any hints are greatly appreciated.
Thanks, Eugen
[1]
https://docs.ceph.com/en/latest/cephadm/services/monitoring/#configuring-ssl... _______________________________________________ ceph-users mailing list -- ceph-users@ceph.io To unsubscribe send an email to ceph-users-leave@ceph.io
Hi, thanks for the suggestion, I'm aware of a wildcard certificate option (which brings its own issues for other services). But since the ceph config seems to support this per-host based certificates I would like to get this running. Thanks, Eugen Zitat von Reto Gysi <rlgysi@gmail.com>:
Hi Eugen,
I've created a certificate with subject alternative names, so the certificate is valid on each node of the cluster. [image: image.png]
Cheers
Reto
Am Do., 20. Apr. 2023 um 11:42 Uhr schrieb Eugen Block <eblock@nde.ag>:
Hi *,
I've set up grafana, prometheus and node-exporter on an adopted cluster (currently running 16.2.10) and was trying to enable ssl for grafana. As stated in the docs [1] there's a way to configure individual certs and keys per host:
ceph config-key set mgr/cephadm/{hostname}/grafana_key -i $PWD/key.pem ceph config-key set mgr/cephadm/{hostname}/grafana_crt -i $PWD/certificate.pem
So I did that, then ran 'ceph orch reconfig grafana' but I still get a bad cert error message:
Apr 20 10:21:19 ceph01 conmon[3772491]: server.go:3160: http: TLS handshake error from <IP>:46084: remote error: tls: bad certificate
It seems like the cephadm generated cert/key pair (mgr/cephadm/grafana_key; mgr/cephadm/grafana_crt) supersedes the per-host certs, and even after removing the generated cert/key (and then reconfigure) cephadm regenerates a them and leaves me with the same problem. Is this a known issue and what would be the fix? I didn't find anything on tracker, but I might have missed it. To confirm that my custom certs actually work I replaced the general cert with my custom cert and the error doesn't appear, I can see the grafana graphs in the dashboard. I could leave it like this, but if grafana would failover it wouldn't work anymore, of course. Any hints are greatly appreciated.
Thanks, Eugen
[1]
https://docs.ceph.com/en/latest/cephadm/services/monitoring/#configuring-ssl... _______________________________________________ ceph-users mailing list -- ceph-users@ceph.io To unsubscribe send an email to ceph-users-leave@ceph.io
I looked a bit deeper and compared to a similar customer cluster (16.2.11) where I had to reconfigure grafana after an upgrade anyway. There it seems to work as expected with the per-host certificate. I only added the host-specific certs and keys and see the graphs in the dashboard while on our 16.2.10 cluster this doesn't work that way. So I assume there must be a difference between .10 and .11 regarding grafana, could anyone confirm this? Zitat von Eugen Block <eblock@nde.ag>:
Hi,
thanks for the suggestion, I'm aware of a wildcard certificate option (which brings its own issues for other services). But since the ceph config seems to support this per-host based certificates I would like to get this running.
Thanks, Eugen
Zitat von Reto Gysi <rlgysi@gmail.com>:
Hi Eugen,
I've created a certificate with subject alternative names, so the certificate is valid on each node of the cluster. [image: image.png]
Cheers
Reto
Am Do., 20. Apr. 2023 um 11:42 Uhr schrieb Eugen Block <eblock@nde.ag>:
Hi *,
I've set up grafana, prometheus and node-exporter on an adopted cluster (currently running 16.2.10) and was trying to enable ssl for grafana. As stated in the docs [1] there's a way to configure individual certs and keys per host:
ceph config-key set mgr/cephadm/{hostname}/grafana_key -i $PWD/key.pem ceph config-key set mgr/cephadm/{hostname}/grafana_crt -i $PWD/certificate.pem
So I did that, then ran 'ceph orch reconfig grafana' but I still get a bad cert error message:
Apr 20 10:21:19 ceph01 conmon[3772491]: server.go:3160: http: TLS handshake error from <IP>:46084: remote error: tls: bad certificate
It seems like the cephadm generated cert/key pair (mgr/cephadm/grafana_key; mgr/cephadm/grafana_crt) supersedes the per-host certs, and even after removing the generated cert/key (and then reconfigure) cephadm regenerates a them and leaves me with the same problem. Is this a known issue and what would be the fix? I didn't find anything on tracker, but I might have missed it. To confirm that my custom certs actually work I replaced the general cert with my custom cert and the error doesn't appear, I can see the grafana graphs in the dashboard. I could leave it like this, but if grafana would failover it wouldn't work anymore, of course. Any hints are greatly appreciated.
Thanks, Eugen
[1]
https://docs.ceph.com/en/latest/cephadm/services/monitoring/#configuring-ssl... _______________________________________________ ceph-users mailing list -- ceph-users@ceph.io To unsubscribe send an email to ceph-users-leave@ceph.io
Seems like the per-host config was actually introduced in 16.2.11: https://github.com/ceph/ceph/pull/48103 So I'm gonna have to wait for 16.2.13. Sorry for the noise. Zitat von Eugen Block <eblock@nde.ag>:
I looked a bit deeper and compared to a similar customer cluster (16.2.11) where I had to reconfigure grafana after an upgrade anyway. There it seems to work as expected with the per-host certificate. I only added the host-specific certs and keys and see the graphs in the dashboard while on our 16.2.10 cluster this doesn't work that way. So I assume there must be a difference between .10 and .11 regarding grafana, could anyone confirm this?
Zitat von Eugen Block <eblock@nde.ag>:
Hi,
thanks for the suggestion, I'm aware of a wildcard certificate option (which brings its own issues for other services). But since the ceph config seems to support this per-host based certificates I would like to get this running.
Thanks, Eugen
Zitat von Reto Gysi <rlgysi@gmail.com>:
Hi Eugen,
I've created a certificate with subject alternative names, so the certificate is valid on each node of the cluster. [image: image.png]
Cheers
Reto
Am Do., 20. Apr. 2023 um 11:42 Uhr schrieb Eugen Block <eblock@nde.ag>:
Hi *,
I've set up grafana, prometheus and node-exporter on an adopted cluster (currently running 16.2.10) and was trying to enable ssl for grafana. As stated in the docs [1] there's a way to configure individual certs and keys per host:
ceph config-key set mgr/cephadm/{hostname}/grafana_key -i $PWD/key.pem ceph config-key set mgr/cephadm/{hostname}/grafana_crt -i $PWD/certificate.pem
So I did that, then ran 'ceph orch reconfig grafana' but I still get a bad cert error message:
Apr 20 10:21:19 ceph01 conmon[3772491]: server.go:3160: http: TLS handshake error from <IP>:46084: remote error: tls: bad certificate
It seems like the cephadm generated cert/key pair (mgr/cephadm/grafana_key; mgr/cephadm/grafana_crt) supersedes the per-host certs, and even after removing the generated cert/key (and then reconfigure) cephadm regenerates a them and leaves me with the same problem. Is this a known issue and what would be the fix? I didn't find anything on tracker, but I might have missed it. To confirm that my custom certs actually work I replaced the general cert with my custom cert and the error doesn't appear, I can see the grafana graphs in the dashboard. I could leave it like this, but if grafana would failover it wouldn't work anymore, of course. Any hints are greatly appreciated.
Thanks, Eugen
[1]
https://docs.ceph.com/en/latest/cephadm/services/monitoring/#configuring-ssl... _______________________________________________ ceph-users mailing list -- ceph-users@ceph.io To unsubscribe send an email to ceph-users-leave@ceph.io
