Dedicated radosgw gateways
Hi all, at Cephalocon 2023, it was mentioned several times that for service tasks such as data deletion via garbage collection or data replication in S3 via zoning, it is good to do them on dedicated radosgw gateways and not mix them with gateways used by users. How can this be achieved? How can we isolate these tasks? Will using dedicated keyrings instead of admin keys be sufficient? How do you operate this in your environment? Thx Michal
Hi,
On 15 May 2023, at 14:58, Michal Strnad <michal.strnad@cesnet.cz> wrote:
at Cephalocon 2023, it was mentioned several times that for service tasks such as data deletion via garbage collection or data replication in S3 via zoning, it is good to do them on dedicated radosgw gateways and not mix them with gateways used by users. How can this be achieved? How can we isolate these tasks? Will using dedicated keyrings instead of admin keys be sufficient? How do you operate this in your environment?
Just: # don't put client traffic to "dedicated radosgw gateways" # disable lc/gc on "gateways used by users" via `rgw_enable_lc_threads = false` & `rgw_enable_gc_threads = false` k
Hi, thank you for the response. That sounds like a reasonable solution. Michal On 5/15/23 14:15, Konstantin Shalygin wrote:
Hi,
On 15 May 2023, at 14:58, Michal Strnad <michal.strnad@cesnet.cz> wrote:
at Cephalocon 2023, it was mentioned several times that for service tasks such as data deletion via garbage collection or data replication in S3 via zoning, it is good to do them on dedicated radosgw gateways and not mix them with gateways used by users. How can this be achieved? How can we isolate these tasks? Will using dedicated keyrings instead of admin keys be sufficient? How do you operate this in your environment?
Just:
# don't put client traffic to "dedicated radosgw gateways" # disable lc/gc on "gateways used by users" via `rgw_enable_lc_threads = false` & `rgw_enable_gc_threads = false`
k
Hi, Which video talks about that? Thanks. On Mon, May 15, 2023 at 9:51 PM Michal Strnad <michal.strnad@cesnet.cz> wrote:
Hi,
thank you for the response. That sounds like a reasonable solution.
Michal
On 5/15/23 14:15, Konstantin Shalygin wrote:
Hi,
On 15 May 2023, at 14:58, Michal Strnad <michal.strnad@cesnet.cz> wrote:
at Cephalocon 2023, it was mentioned several times that for service tasks such as data deletion via garbage collection or data replication in S3 via zoning, it is good to do them on dedicated radosgw gateways and not mix them with gateways used by users. How can this be achieved? How can we isolate these tasks? Will using dedicated keyrings instead of admin keys be sufficient? How do you operate this in your environment?
Just:
# don't put client traffic to "dedicated radosgw gateways" # disable lc/gc on "gateways used by users" via `rgw_enable_lc_threads = false` & `rgw_enable_gc_threads = false`
k
ceph-users mailing list -- ceph-users@ceph.io To unsubscribe send an email to ceph-users-leave@ceph.io
-- Jonas
Hi, Might be a dumb question … I'm wondering how I can set those config variables in some but not all RGW processes? I'm on a cephadm 17.2.6. On 3 nodes I have RGWs. The ones on 8080 are behind haproxy for users. the ones one 8081 I'd like for sync only. # ceph orch ps | grep rgw rgw.max.maxvm4.lmjaef maxvm4 *:8080 running (51m) 4s ago 2h 262M - 17.2.6 d007367d0f3c 315f47a4f164 rgw.max.maxvm4.lwzxpf maxvm4 *:8081 running (51m) 4s ago 2h 199M - 17.2.6 d007367d0f3c 7ae82e5f6ef2 rgw.max.maxvm5.syxpnb maxvm5 *:8081 running (51m) 4s ago 2h 137M - 17.2.6 d007367d0f3c c0635c09ba8f rgw.max.maxvm5.wtpyfk maxvm5 *:8080 running (51m) 4s ago 2h 267M - 17.2.6 d007367d0f3c b4ad91718094 rgw.max.maxvm6.ostneb maxvm6 *:8081 running (51m) 4s ago 2h 150M - 17.2.6 d007367d0f3c 83b2af8f787a rgw.max.maxvm6.qfulra maxvm6 *:8080 running (51m) 4s ago 2h 262M - 17.2.6 d007367d0f3c 81d01bf9e21d # ceph config show rgw.max.maxvm4.lwzxpf Error ENOENT: no config state for daemon rgw.max.maxvm4.lwzxpf # ceph config set rgw.max.maxvm4.lwzxpf rgw_enable_lc_threads false Error EINVAL: unrecognized config target 'rgw.max.maxvm4.lwzxpf' (Not surprised) # ceph tell rgw.max.maxvm4.lmjaef get rgw_enable_lc_threads error handling command target: local variable 'poolid' referenced before assignment # ceph tell rgw.max.maxvm4.lmjaef set rgw_enable_lc_threads false error handling command target: local variable 'poolid' referenced before assignment Is there any way to set the config for specific RGWs in a containerized env? (ceph.conf doesn't work. Doesn't do anything and gets overwritten with a minimall version at "unpredictable" intervalls) Thanks for any ideas. Ciao, Uli
On 15. May 2023, at 14:15, Konstantin Shalygin <k0ste@k0ste.ru> wrote:
Hi,
On 15 May 2023, at 14:58, Michal Strnad <michal.strnad@cesnet.cz> wrote:
at Cephalocon 2023, it was mentioned several times that for service tasks such as data deletion via garbage collection or data replication in S3 via zoning, it is good to do them on dedicated radosgw gateways and not mix them with gateways used by users. How can this be achieved? How can we isolate these tasks? Will using dedicated keyrings instead of admin keys be sufficient? How do you operate this in your environment?
Just:
# don't put client traffic to "dedicated radosgw gateways" # disable lc/gc on "gateways used by users" via `rgw_enable_lc_threads = false` & `rgw_enable_gc_threads = false`
k _______________________________________________ ceph-users mailing list -- ceph-users@ceph.io To unsubscribe send an email to ceph-users-leave@ceph.io
Adding a bit more context to this thread. I added an additional radosgw to each cluser. Radosgw 1-3 are customer facing. Radosgw #4 is dedicated to syncing Radosgw 1-3 now have an additional lines: rgw_enable_lc_threads = False rgw_enable_gc_threads = False Radosgw4 has the additional line: rgw_sync_obj_etag_verify = True The logs on any of the radosgw’s appear to be identical, but here is an example log that is reflect on any of the servers. Notice the IP addresses are 1-4. Where I expect the traffic to be from only 4. Is this to be expected? My understanding of this thread is that this traffic would be regulated to radosgw 04. Example Ceph Conf for a single node, this is RadosGw 01 [client.rgw.west01.rgw0] host = west01 keyring = /var/lib/ceph/radosgw/west-rgw.west01.rgw0/keyring log file = /var/log/ceph/west-rgw-west01.rgw0.log rgw frontends = beast port=8080 num_threads=500 rgw_dns_name = west01.example.com rgw_max_chunk_size = 67108864 rgw_obj_stripe_size = 67108864 rgw_put_obj_min_window_size = 67108864 rgw_zone = rgw-west rgw_enable_lc_threads = False rgw_enable_gc_threads = False ------------ Example Logs: 2023-05-18T19:06:48.295+0000 7fb295f83700 1 beast: 0x7fb3e82b26f0: 10.10.10.1 - synchronization-user [18/May/2023:19:06:48.107 +0000] "GET /admin/log/?type=data&id=69&marker=1_xxxx&extra-info=true&rgwx-zonegroup=xxxxx HTTP/1.1" 200 44 - - - latency=0.188007131s 2023-05-18T19:06:48.371+0000 7fb1dd612700 1 ====== starting new request req=0x7fb3e80ae6f0 ===== 2023-05-18T19:06:48.567+0000 7fb1dd612700 1 ====== req done req=0x7fb3e80ae6f0 op status=0 http_status=200 latency=0.196007445s ====== 2023-05-18T19:06:48.567+0000 7fb1dd612700 1 beast: 0x7fb3e80ae6f0: 10.10.10.3 - synchronization-user [18/May/2023:19:06:48.371 +0000] "GET /admin/log/?type=data&id=107&marker=1_xxxx&extra-info=true&rgwx-zonegroup=xxxx HTTP/1.1" 200 44 - - - latency=0.196007445s 2023-05-18T19:06:49.023+0000 7fb290f79700 1 ====== starting new request req=0x7fb3e81b06f0 ===== 2023-05-18T19:06:49.023+0000 7fb28bf6f700 1 ====== req done req=0x7fb3e81b06f0 op status=0 http_status=200 latency=0.000000000s ====== 2023-05-18T19:06:49.023+0000 7fb28bf6f700 1 beast: 0x7fb3e81b06f0: 10.10.10.2 - synchronization-user [18/May/2023:19:06:49.023 +0000] "GET /admin/log?bucket-instance=ceph-bucketxxx%3A81&format=json&marker=00000020447.3609723.6&type=bucket-index&rgwx-zonegroup=xxx HTTP/1.1" 200 2 - - - latency=0.000000000s 2023-05-18T19:06:49.147+0000 7fb27af4d700 1 ====== starting new request req=0x7fb3e81b06f0 ===== 2023-05-18T19:06:49.151+0000 7fb27af4d700 1 ====== req done req=0x7fb3e81b06f0 op status=0 http_status=200 latency=0.004000151s ====== 2023-05-18T19:06:49.475+0000 7fb280f59700 1 beast: 0x7fb3e82316f0: 10.10.10.4 - synchronization-user [18/May/2023:19:06:49.279 +0000] "GET /admin/log/?type=data&id=58&marker=1_xxxx.1&extra-info=true&rgwx-zonegroup=xxxx HTTP/1.1" 200 312 - - - latency=0.196007445s 2023-05-18T19:06:49.987+0000 7fb27c750700 1 ====== starting new request req=0x7fb3e81b06f0 ===== radosgw-admin zonegroup get { "id": "x", "name": "eastWestceph", "api_name": "EastWestCeph", "is_master": "true", "endpoints": [ "http://east01.noam.lnrm.net:8080", "http://east02.noam.lnrm.net:8080", "http://east03.noam.lnrm.net:8080", "http://east04.noam.lnrm.net:8080", << ---- sync node "http://west01.noam.lnrm.net:8080", "http://west02.noam.lnrm.net:8080", "http://west03.noam.lnrm.net:8080", "http://west04.noam.lnrm.net:8080" << ---- sync node ], ....... ], "hostnames_s3website": [], "master_zone": "x", "zones": [ { "id": "x", "name": "rgw-west", "endpoints": [ "http://west01.noam.lnrm.net:8080", "http://west02.noam.lnrm.net:8080", "http://west03.noam.lnrm.net:8080", "http://west04.noam.lnrm.net:8080" << -- sync node ], "log_meta": "false", "log_data": "true", "bucket_index_max_shards": 0, "read_only": "false", "tier_type": "", "sync_from_all": "true", "sync_from": [], "redirect_zone": "" }, { "id": "x", "name": "rgw-east", "endpoints": [ "http://east01.noam.lnrm.net:8080", "http://east02.noam.lnrm.net:8080", "http://east03.noam.lnrm.net:8080", "http://east04.noam.lnrm.net:8080" << -- sync node .... From: Ulrich Klein <Ulrich.Klein@ulrichklein.de> Date: Tuesday, May 16, 2023 at 10:22 AM To: Konstantin Shalygin <k0ste@k0ste.ru> Cc: Michal Strnad <michal.strnad@cesnet.cz>, ceph-users <ceph-users@ceph.io> Subject: [ceph-users] Re: Dedicated radosgw gateways [You don't often get email from ulrich.klein@ulrichklein.de. Learn why this is important at https://aka.ms/LearnAboutSenderIdentification ] *** External email: use caution *** Hi, Might be a dumb question … I'm wondering how I can set those config variables in some but not all RGW processes? I'm on a cephadm 17.2.6. On 3 nodes I have RGWs. The ones on 8080 are behind haproxy for users. the ones one 8081 I'd like for sync only. # ceph orch ps | grep rgw rgw.max.maxvm4.lmjaef maxvm4 *:8080 running (51m) 4s ago 2h 262M - 17.2.6 d007367d0f3c 315f47a4f164 rgw.max.maxvm4.lwzxpf maxvm4 *:8081 running (51m) 4s ago 2h 199M - 17.2.6 d007367d0f3c 7ae82e5f6ef2 rgw.max.maxvm5.syxpnb maxvm5 *:8081 running (51m) 4s ago 2h 137M - 17.2.6 d007367d0f3c c0635c09ba8f rgw.max.maxvm5.wtpyfk maxvm5 *:8080 running (51m) 4s ago 2h 267M - 17.2.6 d007367d0f3c b4ad91718094 rgw.max.maxvm6.ostneb maxvm6 *:8081 running (51m) 4s ago 2h 150M - 17.2.6 d007367d0f3c 83b2af8f787a rgw.max.maxvm6.qfulra maxvm6 *:8080 running (51m) 4s ago 2h 262M - 17.2.6 d007367d0f3c 81d01bf9e21d # ceph config show rgw.max.maxvm4.lwzxpf Error ENOENT: no config state for daemon rgw.max.maxvm4.lwzxpf # ceph config set rgw.max.maxvm4.lwzxpf rgw_enable_lc_threads false Error EINVAL: unrecognized config target 'rgw.max.maxvm4.lwzxpf' (Not surprised) # ceph tell rgw.max.maxvm4.lmjaef get rgw_enable_lc_threads error handling command target: local variable 'poolid' referenced before assignment # ceph tell rgw.max.maxvm4.lmjaef set rgw_enable_lc_threads false error handling command target: local variable 'poolid' referenced before assignment Is there any way to set the config for specific RGWs in a containerized env? (ceph.conf doesn't work. Doesn't do anything and gets overwritten with a minimall version at "unpredictable" intervalls) Thanks for any ideas. Ciao, Uli
On 15. May 2023, at 14:15, Konstantin Shalygin <k0ste@k0ste.ru> wrote:
Hi,
On 15 May 2023, at 14:58, Michal Strnad <michal.strnad@cesnet.cz> wrote:
at Cephalocon 2023, it was mentioned several times that for service tasks such as data deletion via garbage collection or data replication in S3 via zoning, it is good to do them on dedicated radosgw gateways and not mix them with gateways used by users. How can this be achieved? How can we isolate these tasks? Will using dedicated keyrings instead of admin keys be sufficient? How do you operate this in your environment?
Just:
# don't put client traffic to "dedicated radosgw gateways" # disable lc/gc on "gateways used by users" via `rgw_enable_lc_threads = false` & `rgw_enable_gc_threads = false`
k _______________________________________________ ceph-users mailing list -- ceph-users@ceph.io To unsubscribe send an email to ceph-users-leave@ceph.io
ceph-users mailing list -- ceph-users@ceph.io To unsubscribe send an email to ceph-users-leave@ceph.io ________________________________ The information contained in this e-mail message is intended only for the personal and confidential use of the recipient(s) named above. This message may be an attorney-client communication and/or work product and as such is privileged and confidential. If the reader of this message is not the intended recipient or an agent responsible for delivering it to the intended recipient, you are hereby notified that you have received this document in error and that any review, dissemination, distribution, or copying of this message is strictly prohibited. If you have received this communication in error, please notify us immediately by e-mail, and delete the original message.
I've searched for rgw_enable_lc_threads and rgw_enable_gc_threads a bit. but there is little information about those settings. Is there any documentation in the wild about those settings? Are they enabled by default? On Thu, May 18, 2023 at 9:15 PM Tarrago, Eli (RIS-BCT) < Eli.Tarrago@lexisnexisrisk.com> wrote:
Adding a bit more context to this thread.
I added an additional radosgw to each cluser. Radosgw 1-3 are customer facing. Radosgw #4 is dedicated to syncing
Radosgw 1-3 now have an additional lines: rgw_enable_lc_threads = False rgw_enable_gc_threads = False
Radosgw4 has the additional line: rgw_sync_obj_etag_verify = True
The logs on any of the radosgw’s appear to be identical, but here is an example log that is reflect on any of the servers. Notice the IP addresses are 1-4. Where I expect the traffic to be from only 4.
Is this to be expected?
My understanding of this thread is that this traffic would be regulated to radosgw 04.
Example Ceph Conf for a single node, this is RadosGw 01
[client.rgw.west01.rgw0] host = west01 keyring = /var/lib/ceph/radosgw/west-rgw.west01.rgw0/keyring log file = /var/log/ceph/west-rgw-west01.rgw0.log rgw frontends = beast port=8080 num_threads=500 rgw_dns_name = west01.example.com rgw_max_chunk_size = 67108864 rgw_obj_stripe_size = 67108864 rgw_put_obj_min_window_size = 67108864 rgw_zone = rgw-west rgw_enable_lc_threads = False rgw_enable_gc_threads = False
------------
Example Logs:
2023-05-18T19:06:48.295+0000 7fb295f83700 1 beast: 0x7fb3e82b26f0: 10.10.10.1 - synchronization-user [18/May/2023:19:06:48.107 +0000] "GET /admin/log/?type=data&id=69&marker=1_xxxx&extra-info=true&rgwx-zonegroup=xxxxx HTTP/1.1" 200 44 - - - latency=0.188007131s 2023-05-18T19:06:48.371+0000 7fb1dd612700 1 ====== starting new request req=0x7fb3e80ae6f0 ===== 2023-05-18T19:06:48.567+0000 7fb1dd612700 1 ====== req done req=0x7fb3e80ae6f0 op status=0 http_status=200 latency=0.196007445s ====== 2023-05-18T19:06:48.567+0000 7fb1dd612700 1 beast: 0x7fb3e80ae6f0: 10.10.10.3 - synchronization-user [18/May/2023:19:06:48.371 +0000] "GET /admin/log/?type=data&id=107&marker=1_xxxx&extra-info=true&rgwx-zonegroup=xxxx HTTP/1.1" 200 44 - - - latency=0.196007445s 2023-05-18T19:06:49.023+0000 7fb290f79700 1 ====== starting new request req=0x7fb3e81b06f0 ===== 2023-05-18T19:06:49.023+0000 7fb28bf6f700 1 ====== req done req=0x7fb3e81b06f0 op status=0 http_status=200 latency=0.000000000s ====== 2023-05-18T19:06:49.023+0000 7fb28bf6f700 1 beast: 0x7fb3e81b06f0: 10.10.10.2 - synchronization-user [18/May/2023:19:06:49.023 +0000] "GET /admin/log?bucket-instance=ceph-bucketxxx%3A81&format=json&marker=00000020447.3609723.6&type=bucket-index&rgwx-zonegroup=xxx HTTP/1.1" 200 2 - - - latency=0.000000000s 2023-05-18T19:06:49.147+0000 7fb27af4d700 1 ====== starting new request req=0x7fb3e81b06f0 ===== 2023-05-18T19:06:49.151+0000 7fb27af4d700 1 ====== req done req=0x7fb3e81b06f0 op status=0 http_status=200 latency=0.004000151s ====== 2023-05-18T19:06:49.475+0000 7fb280f59700 1 beast: 0x7fb3e82316f0: 10.10.10.4 - synchronization-user [18/May/2023:19:06:49.279 +0000] "GET /admin/log/?type=data&id=58&marker=1_xxxx.1&extra-info=true&rgwx-zonegroup=xxxx HTTP/1.1" 200 312 - - - latency=0.196007445s 2023-05-18T19:06:49.987+0000 7fb27c750700 1 ====== starting new request req=0x7fb3e81b06f0 =====
radosgw-admin zonegroup get { "id": "x", "name": "eastWestceph", "api_name": "EastWestCeph", "is_master": "true", "endpoints": [ "http://east01.noam.lnrm.net:8080", "http://east02.noam.lnrm.net:8080", "http://east03.noam.lnrm.net:8080", "http://east04.noam.lnrm.net:8080", << ---- sync node "http://west01.noam.lnrm.net:8080", "http://west02.noam.lnrm.net:8080", "http://west03.noam.lnrm.net:8080", "http://west04.noam.lnrm.net:8080" << ---- sync node ], ....... ], "hostnames_s3website": [], "master_zone": "x", "zones": [ { "id": "x", "name": "rgw-west", "endpoints": [ "http://west01.noam.lnrm.net:8080", "http://west02.noam.lnrm.net:8080", "http://west03.noam.lnrm.net:8080", "http://west04.noam.lnrm.net:8080" << -- sync node ], "log_meta": "false", "log_data": "true", "bucket_index_max_shards": 0, "read_only": "false", "tier_type": "", "sync_from_all": "true", "sync_from": [], "redirect_zone": "" }, { "id": "x", "name": "rgw-east", "endpoints": [ "http://east01.noam.lnrm.net:8080", "http://east02.noam.lnrm.net:8080", "http://east03.noam.lnrm.net:8080", "http://east04.noam.lnrm.net:8080" << -- sync node .... From: Ulrich Klein <Ulrich.Klein@ulrichklein.de> Date: Tuesday, May 16, 2023 at 10:22 AM To: Konstantin Shalygin <k0ste@k0ste.ru> Cc: Michal Strnad <michal.strnad@cesnet.cz>, ceph-users < ceph-users@ceph.io> Subject: [ceph-users] Re: Dedicated radosgw gateways [You don't often get email from ulrich.klein@ulrichklein.de. Learn why this is important at https://aka.ms/LearnAboutSenderIdentification ]
*** External email: use caution ***
Hi,
Might be a dumb question … I'm wondering how I can set those config variables in some but not all RGW processes?
I'm on a cephadm 17.2.6. On 3 nodes I have RGWs. The ones on 8080 are behind haproxy for users. the ones one 8081 I'd like for sync only.
# ceph orch ps | grep rgw rgw.max.maxvm4.lmjaef maxvm4 *:8080 running (51m) 4s ago 2h 262M - 17.2.6 d007367d0f3c 315f47a4f164 rgw.max.maxvm4.lwzxpf maxvm4 *:8081 running (51m) 4s ago 2h 199M - 17.2.6 d007367d0f3c 7ae82e5f6ef2 rgw.max.maxvm5.syxpnb maxvm5 *:8081 running (51m) 4s ago 2h 137M - 17.2.6 d007367d0f3c c0635c09ba8f rgw.max.maxvm5.wtpyfk maxvm5 *:8080 running (51m) 4s ago 2h 267M - 17.2.6 d007367d0f3c b4ad91718094 rgw.max.maxvm6.ostneb maxvm6 *:8081 running (51m) 4s ago 2h 150M - 17.2.6 d007367d0f3c 83b2af8f787a rgw.max.maxvm6.qfulra maxvm6 *:8080 running (51m) 4s ago 2h 262M - 17.2.6 d007367d0f3c 81d01bf9e21d
# ceph config show rgw.max.maxvm4.lwzxpf Error ENOENT: no config state for daemon rgw.max.maxvm4.lwzxpf
# ceph config set rgw.max.maxvm4.lwzxpf rgw_enable_lc_threads false Error EINVAL: unrecognized config target 'rgw.max.maxvm4.lwzxpf' (Not surprised)
# ceph tell rgw.max.maxvm4.lmjaef get rgw_enable_lc_threads error handling command target: local variable 'poolid' referenced before assignment
# ceph tell rgw.max.maxvm4.lmjaef set rgw_enable_lc_threads false error handling command target: local variable 'poolid' referenced before assignment
Is there any way to set the config for specific RGWs in a containerized env?
(ceph.conf doesn't work. Doesn't do anything and gets overwritten with a minimall version at "unpredictable" intervalls)
Thanks for any ideas.
Ciao, Uli
On 15. May 2023, at 14:15, Konstantin Shalygin <k0ste@k0ste.ru> wrote:
Hi,
On 15 May 2023, at 14:58, Michal Strnad <michal.strnad@cesnet.cz> wrote:
at Cephalocon 2023, it was mentioned several times that for service tasks such as data deletion via garbage collection or data replication in S3 via zoning, it is good to do them on dedicated radosgw gateways and not mix them with gateways used by users. How can this be achieved? How can we isolate these tasks? Will using dedicated keyrings instead of admin keys be sufficient? How do you operate this in your environment?
Just:
# don't put client traffic to "dedicated radosgw gateways" # disable lc/gc on "gateways used by users" via `rgw_enable_lc_threads = false` & `rgw_enable_gc_threads = false`
k _______________________________________________ ceph-users mailing list -- ceph-users@ceph.io To unsubscribe send an email to ceph-users-leave@ceph.io
ceph-users mailing list -- ceph-users@ceph.io To unsubscribe send an email to ceph-users-leave@ceph.io
________________________________ The information contained in this e-mail message is intended only for the personal and confidential use of the recipient(s) named above. This message may be an attorney-client communication and/or work product and as such is privileged and confidential. If the reader of this message is not the intended recipient or an agent responsible for delivering it to the intended recipient, you are hereby notified that you have received this document in error and that any review, dissemination, distribution, or copying of this message is strictly prohibited. If you have received this communication in error, please notify us immediately by e-mail, and delete the original message. _______________________________________________ ceph-users mailing list -- ceph-users@ceph.io To unsubscribe send an email to ceph-users-leave@ceph.io
Hi,
On 18 May 2023, at 23:04, Rok Jaklič <rjaklic@gmail.com> wrote:
I've searched for rgw_enable_lc_threads and rgw_enable_gc_threads a bit.
but there is little information about those settings. Is there any documentation in the wild about those settings?
This is Life Cycle (see S3 lifecycle policy documentation) and Garbage Collector (actual delete objects from OSD)
Are they enabled by default?
Yes k
Not sure this will help: I did some experiments on small test clusters with separate RGWs for "customers" and for syncing. Both are Cephadm/containerized clusters. Cluster A primary with zone A with 4 nodes, one RGW on each, node 1 and 2 behind one HAProxy/ingress URL for syncing via http://clusterA, node3 and 4 behind one HAPRoxy/ingress for customers via https://customersA Cluster B secondary with zone B with 4 nodes, one RGW on each, node 1 and 2 behind one HAProxy/ingress URL for syncing via http://clusterB, node 3 and 4 behind one HAPRoxy/ingress for customers via https://customersB Endpoint for cluster A is http://clusterA Endpoint for cluster B is http://clusterB I set in cluster B: ceph config set client.rgw.clb.node3.nxumka rgw_run_sync_thread false ceph config set client.rgw.clb.node4.xeeqqq rgw_run_sync_thread false ceph config set client.rgw.clb.node3.nxumka rgw_enable_lc_threads false ceph config set client.rgw.clb.node4.xeeqqq rgw_enable_lc_threads false ceph config set client.rgw.clb.node3.nxumka rgw_enable_gc_threads false ceph config set client.rgw.clb.node4.xeeqqq rgw_enable_gc_threads false ceph orch restart rgw.customer # That's the "service" for customer RGW on nodes 3 and 4. Now I uploaded a 32G file to cluster A (via https://customersA) Once it's uploaded cluster B pulls it over. As the clusters are otherwise completely idle I can check the network load (via SNMP) on the nodes to see which one is doing the transfers. Without the restart cluster B seems to use a random RGW for pulling the sync data, for me actually always node 3 or 4. But after the restart it uses only nodes 1 and 2 for pulling (although I only ran the test 4 times). So, looks like one has to restart the RGWs to pick up the configuration. Ciao, Uli
On 18. May 2023, at 21:14, Tarrago, Eli (RIS-BCT) <Eli.Tarrago@lexisnexisrisk.com> wrote:
Adding a bit more context to this thread.
I added an additional radosgw to each cluser. Radosgw 1-3 are customer facing. Radosgw #4 is dedicated to syncing
Radosgw 1-3 now have an additional lines: rgw_enable_lc_threads = False rgw_enable_gc_threads = False
Radosgw4 has the additional line: rgw_sync_obj_etag_verify = True
The logs on any of the radosgw’s appear to be identical, but here is an example log that is reflect on any of the servers. Notice the IP addresses are 1-4. Where I expect the traffic to be from only 4.
Is this to be expected?
My understanding of this thread is that this traffic would be regulated to radosgw 04.
Example Ceph Conf for a single node, this is RadosGw 01
[client.rgw.west01.rgw0] host = west01 keyring = /var/lib/ceph/radosgw/west-rgw.west01.rgw0/keyring log file = /var/log/ceph/west-rgw-west01.rgw0.log rgw frontends = beast port=8080 num_threads=500 rgw_dns_name = west01.example.com rgw_max_chunk_size = 67108864 rgw_obj_stripe_size = 67108864 rgw_put_obj_min_window_size = 67108864 rgw_zone = rgw-west rgw_enable_lc_threads = False rgw_enable_gc_threads = False
------------
Example Logs:
2023-05-18T19:06:48.295+0000 7fb295f83700 1 beast: 0x7fb3e82b26f0: 10.10.10.1 - synchronization-user [18/May/2023:19:06:48.107 +0000] "GET /admin/log/?type=data&id=69&marker=1_xxxx&extra-info=true&rgwx-zonegroup=xxxxx HTTP/1.1" 200 44 - - - latency=0.188007131s 2023-05-18T19:06:48.371+0000 7fb1dd612700 1 ====== starting new request req=0x7fb3e80ae6f0 ===== 2023-05-18T19:06:48.567+0000 7fb1dd612700 1 ====== req done req=0x7fb3e80ae6f0 op status=0 http_status=200 latency=0.196007445s ====== 2023-05-18T19:06:48.567+0000 7fb1dd612700 1 beast: 0x7fb3e80ae6f0: 10.10.10.3 - synchronization-user [18/May/2023:19:06:48.371 +0000] "GET /admin/log/?type=data&id=107&marker=1_xxxx&extra-info=true&rgwx-zonegroup=xxxx HTTP/1.1" 200 44 - - - latency=0.196007445s 2023-05-18T19:06:49.023+0000 7fb290f79700 1 ====== starting new request req=0x7fb3e81b06f0 ===== 2023-05-18T19:06:49.023+0000 7fb28bf6f700 1 ====== req done req=0x7fb3e81b06f0 op status=0 http_status=200 latency=0.000000000s ====== 2023-05-18T19:06:49.023+0000 7fb28bf6f700 1 beast: 0x7fb3e81b06f0: 10.10.10.2 - synchronization-user [18/May/2023:19:06:49.023 +0000] "GET /admin/log?bucket-instance=ceph-bucketxxx%3A81&format=json&marker=00000020447.3609723.6&type=bucket-index&rgwx-zonegroup=xxx HTTP/1.1" 200 2 - - - latency=0.000000000s 2023-05-18T19:06:49.147+0000 7fb27af4d700 1 ====== starting new request req=0x7fb3e81b06f0 ===== 2023-05-18T19:06:49.151+0000 7fb27af4d700 1 ====== req done req=0x7fb3e81b06f0 op status=0 http_status=200 latency=0.004000151s ====== 2023-05-18T19:06:49.475+0000 7fb280f59700 1 beast: 0x7fb3e82316f0: 10.10.10.4 - synchronization-user [18/May/2023:19:06:49.279 +0000] "GET /admin/log/?type=data&id=58&marker=1_xxxx.1&extra-info=true&rgwx-zonegroup=xxxx HTTP/1.1" 200 312 - - - latency=0.196007445s 2023-05-18T19:06:49.987+0000 7fb27c750700 1 ====== starting new request req=0x7fb3e81b06f0 =====
radosgw-admin zonegroup get { "id": "x", "name": "eastWestceph", "api_name": "EastWestCeph", "is_master": "true", "endpoints": [ "http://east01.noam.lnrm.net:8080", "http://east02.noam.lnrm.net:8080", "http://east03.noam.lnrm.net:8080", "http://east04.noam.lnrm.net:8080", << ---- sync node "http://west01.noam.lnrm.net:8080", "http://west02.noam.lnrm.net:8080", "http://west03.noam.lnrm.net:8080", "http://west04.noam.lnrm.net:8080" << ---- sync node ], ....... ], "hostnames_s3website": [], "master_zone": "x", "zones": [ { "id": "x", "name": "rgw-west", "endpoints": [ "http://west01.noam.lnrm.net:8080", "http://west02.noam.lnrm.net:8080", "http://west03.noam.lnrm.net:8080", "http://west04.noam.lnrm.net:8080" << -- sync node ], "log_meta": "false", "log_data": "true", "bucket_index_max_shards": 0, "read_only": "false", "tier_type": "", "sync_from_all": "true", "sync_from": [], "redirect_zone": "" }, { "id": "x", "name": "rgw-east", "endpoints": [ "http://east01.noam.lnrm.net:8080", "http://east02.noam.lnrm.net:8080", "http://east03.noam.lnrm.net:8080", "http://east04.noam.lnrm.net:8080" << -- sync node .... From: Ulrich Klein <Ulrich.Klein@ulrichklein.de> Date: Tuesday, May 16, 2023 at 10:22 AM To: Konstantin Shalygin <k0ste@k0ste.ru> Cc: Michal Strnad <michal.strnad@cesnet.cz>, ceph-users <ceph-users@ceph.io> Subject: [ceph-users] Re: Dedicated radosgw gateways [You don't often get email from ulrich.klein@ulrichklein.de. Learn why this is important at https://aka.ms/LearnAboutSenderIdentification ]
*** External email: use caution ***
Hi,
Might be a dumb question … I'm wondering how I can set those config variables in some but not all RGW processes?
I'm on a cephadm 17.2.6. On 3 nodes I have RGWs. The ones on 8080 are behind haproxy for users. the ones one 8081 I'd like for sync only.
# ceph orch ps | grep rgw rgw.max.maxvm4.lmjaef maxvm4 *:8080 running (51m) 4s ago 2h 262M - 17.2.6 d007367d0f3c 315f47a4f164 rgw.max.maxvm4.lwzxpf maxvm4 *:8081 running (51m) 4s ago 2h 199M - 17.2.6 d007367d0f3c 7ae82e5f6ef2 rgw.max.maxvm5.syxpnb maxvm5 *:8081 running (51m) 4s ago 2h 137M - 17.2.6 d007367d0f3c c0635c09ba8f rgw.max.maxvm5.wtpyfk maxvm5 *:8080 running (51m) 4s ago 2h 267M - 17.2.6 d007367d0f3c b4ad91718094 rgw.max.maxvm6.ostneb maxvm6 *:8081 running (51m) 4s ago 2h 150M - 17.2.6 d007367d0f3c 83b2af8f787a rgw.max.maxvm6.qfulra maxvm6 *:8080 running (51m) 4s ago 2h 262M - 17.2.6 d007367d0f3c 81d01bf9e21d
# ceph config show rgw.max.maxvm4.lwzxpf Error ENOENT: no config state for daemon rgw.max.maxvm4.lwzxpf
# ceph config set rgw.max.maxvm4.lwzxpf rgw_enable_lc_threads false Error EINVAL: unrecognized config target 'rgw.max.maxvm4.lwzxpf' (Not surprised)
# ceph tell rgw.max.maxvm4.lmjaef get rgw_enable_lc_threads error handling command target: local variable 'poolid' referenced before assignment
# ceph tell rgw.max.maxvm4.lmjaef set rgw_enable_lc_threads false error handling command target: local variable 'poolid' referenced before assignment
Is there any way to set the config for specific RGWs in a containerized env?
(ceph.conf doesn't work. Doesn't do anything and gets overwritten with a minimall version at "unpredictable" intervalls)
Thanks for any ideas.
Ciao, Uli
On 15. May 2023, at 14:15, Konstantin Shalygin <k0ste@k0ste.ru> wrote:
Hi,
On 15 May 2023, at 14:58, Michal Strnad <michal.strnad@cesnet.cz> wrote:
at Cephalocon 2023, it was mentioned several times that for service tasks such as data deletion via garbage collection or data replication in S3 via zoning, it is good to do them on dedicated radosgw gateways and not mix them with gateways used by users. How can this be achieved? How can we isolate these tasks? Will using dedicated keyrings instead of admin keys be sufficient? How do you operate this in your environment?
Just:
# don't put client traffic to "dedicated radosgw gateways" # disable lc/gc on "gateways used by users" via `rgw_enable_lc_threads = false` & `rgw_enable_gc_threads = false`
k _______________________________________________ ceph-users mailing list -- ceph-users@ceph.io To unsubscribe send an email to ceph-users-leave@ceph.io
ceph-users mailing list -- ceph-users@ceph.io To unsubscribe send an email to ceph-users-leave@ceph.io
________________________________ The information contained in this e-mail message is intended only for the personal and confidential use of the recipient(s) named above. This message may be an attorney-client communication and/or work product and as such is privileged and confidential. If the reader of this message is not the intended recipient or an agent responsible for delivering it to the intended recipient, you are hereby notified that you have received this document in error and that any review, dissemination, distribution, or copying of this message is strictly prohibited. If you have received this communication in error, please notify us immediately by e-mail, and delete the original message. _______________________________________________ ceph-users mailing list -- ceph-users@ceph.io To unsubscribe send an email to ceph-users-leave@ceph.io
Thanks Ulrich, using `ceph config set` instead of specifying in the config file did end up working for me. What I expected to happen with these series of changes would be: RadosGW4 would only sync with RadosGW 4 of the opposing site. Looking at the logs, I see that RadosGW4 talks to WestGW1,2,3,4 instead of just 4 and 4 exclusively. I see this same pattern of activity from both sides of the zonegroup. Is this expected? My expectation was RadosGW4 would exclusivly talk to RadosGW4 to remove sync traffic from client facing radosgw. I have included a diagram below. I am unsure if pictures come thru the mailing lists [A picture containing diagram, line, text, screenshot Description automatically generated] From: Ulrich Klein <Ulrich.Klein@ulrichklein.de> Date: Friday, May 19, 2023 at 5:57 AM To: Tarrago, Eli (RIS-BCT) <Eli.Tarrago@lexisnexisrisk.com> Cc: ceph-users <ceph-users@ceph.io> Subject: Re: [ceph-users] Dedicated radosgw gateways [You don't often get email from ulrich.klein@ulrichklein.de. Learn why this is important at https://aka.ms/LearnAboutSenderIdentification ] *** External email: use caution *** Not sure this will help: I did some experiments on small test clusters with separate RGWs for "customers" and for syncing. Both are Cephadm/containerized clusters. Cluster A primary with zone A with 4 nodes, one RGW on each, node 1 and 2 behind one HAProxy/ingress URL for syncing via http://clusterA, node3 and 4 behind one HAPRoxy/ingress for customers via https://customersA Cluster B secondary with zone B with 4 nodes, one RGW on each, node 1 and 2 behind one HAProxy/ingress URL for syncing via http://clusterB, node 3 and 4 behind one HAPRoxy/ingress for customers via https://customersB Endpoint for cluster A is http://clusterA Endpoint for cluster B is http://clusterB I set in cluster B: ceph config set client.rgw.clb.node3.nxumka rgw_run_sync_thread false ceph config set client.rgw.clb.node4.xeeqqq rgw_run_sync_thread false ceph config set client.rgw.clb.node3.nxumka rgw_enable_lc_threads false ceph config set client.rgw.clb.node4.xeeqqq rgw_enable_lc_threads false ceph config set client.rgw.clb.node3.nxumka rgw_enable_gc_threads false ceph config set client.rgw.clb.node4.xeeqqq rgw_enable_gc_threads false ceph orch restart rgw.customer # That's the "service" for customer RGW on nodes 3 and 4. Now I uploaded a 32G file to cluster A (via https://customersA) Once it's uploaded cluster B pulls it over. As the clusters are otherwise completely idle I can check the network load (via SNMP) on the nodes to see which one is doing the transfers. Without the restart cluster B seems to use a random RGW for pulling the sync data, for me actually always node 3 or 4. But after the restart it uses only nodes 1 and 2 for pulling (although I only ran the test 4 times). So, looks like one has to restart the RGWs to pick up the configuration. Ciao, Uli
On 18. May 2023, at 21:14, Tarrago, Eli (RIS-BCT) <Eli.Tarrago@lexisnexisrisk.com> wrote:
Adding a bit more context to this thread.
I added an additional radosgw to each cluser. Radosgw 1-3 are customer facing. Radosgw #4 is dedicated to syncing
Radosgw 1-3 now have an additional lines: rgw_enable_lc_threads = False rgw_enable_gc_threads = False
Radosgw4 has the additional line: rgw_sync_obj_etag_verify = True
The logs on any of the radosgw’s appear to be identical, but here is an example log that is reflect on any of the servers. Notice the IP addresses are 1-4. Where I expect the traffic to be from only 4.
Is this to be expected?
My understanding of this thread is that this traffic would be regulated to radosgw 04.
Example Ceph Conf for a single node, this is RadosGw 01
[client.rgw.west01.rgw0] host = west01 keyring = /var/lib/ceph/radosgw/west-rgw.west01.rgw0/keyring log file = /var/log/ceph/west-rgw-west01.rgw0.log rgw frontends = beast port=8080 num_threads=500 rgw_dns_name = west01.example.com rgw_max_chunk_size = 67108864 rgw_obj_stripe_size = 67108864 rgw_put_obj_min_window_size = 67108864 rgw_zone = rgw-west rgw_enable_lc_threads = False rgw_enable_gc_threads = False
------------
Example Logs:
2023-05-18T19:06:48.295+0000 7fb295f83700 1 beast: 0x7fb3e82b26f0: 10.10.10.1 - synchronization-user [18/May/2023:19:06:48.107 +0000] "GET /admin/log/?type=data&id=69&marker=1_xxxx&extra-info=true&rgwx-zonegroup=xxxxx HTTP/1.1" 200 44 - - - latency=0.188007131s 2023-05-18T19:06:48.371+0000 7fb1dd612700 1 ====== starting new request req=0x7fb3e80ae6f0 ===== 2023-05-18T19:06:48.567+0000 7fb1dd612700 1 ====== req done req=0x7fb3e80ae6f0 op status=0 http_status=200 latency=0.196007445s ====== 2023-05-18T19:06:48.567+0000 7fb1dd612700 1 beast: 0x7fb3e80ae6f0: 10.10.10.3 - synchronization-user [18/May/2023:19:06:48.371 +0000] "GET /admin/log/?type=data&id=107&marker=1_xxxx&extra-info=true&rgwx-zonegroup=xxxx HTTP/1.1" 200 44 - - - latency=0.196007445s 2023-05-18T19:06:49.023+0000 7fb290f79700 1 ====== starting new request req=0x7fb3e81b06f0 ===== 2023-05-18T19:06:49.023+0000 7fb28bf6f700 1 ====== req done req=0x7fb3e81b06f0 op status=0 http_status=200 latency=0.000000000s ====== 2023-05-18T19:06:49.023+0000 7fb28bf6f700 1 beast: 0x7fb3e81b06f0: 10.10.10.2 - synchronization-user [18/May/2023:19:06:49.023 +0000] "GET /admin/log?bucket-instance=ceph-bucketxxx%3A81&format=json&marker=00000020447.3609723.6&type=bucket-index&rgwx-zonegroup=xxx HTTP/1.1" 200 2 - - - latency=0.000000000s 2023-05-18T19:06:49.147+0000 7fb27af4d700 1 ====== starting new request req=0x7fb3e81b06f0 ===== 2023-05-18T19:06:49.151+0000 7fb27af4d700 1 ====== req done req=0x7fb3e81b06f0 op status=0 http_status=200 latency=0.004000151s ====== 2023-05-18T19:06:49.475+0000 7fb280f59700 1 beast: 0x7fb3e82316f0: 10.10.10.4 - synchronization-user [18/May/2023:19:06:49.279 +0000] "GET /admin/log/?type=data&id=58&marker=1_xxxx.1&extra-info=true&rgwx-zonegroup=xxxx HTTP/1.1" 200 312 - - - latency=0.196007445s 2023-05-18T19:06:49.987+0000 7fb27c750700 1 ====== starting new request req=0x7fb3e81b06f0 =====
radosgw-admin zonegroup get { "id": "x", "name": "eastWestceph", "api_name": "EastWestCeph", "is_master": "true", "endpoints": [ "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Feast01.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260421799%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=zR7bzEi3PxpHB8Y3vdbMYnE8wNcg9u%2F7%2BxVXktjrz1o%3D&reserved=0<http://east01.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Feast02.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260421799%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=iPmJ4ffc6XHa%2F62vzpY4UqHoGzjBmmkEkESOW0ajed8%3D&reserved=0<http://east02.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Feast03.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260421799%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=3SzqU3mz3PdyDdwQOsM2LQeZhfI1AWg%2FYpSXifINolg%3D&reserved=0<http://east03.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Feast04.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=9WTq4ECvAH3GLe%2FoKLsLX%2BdNf0ZXY1q1hK51iEfA%2BDM%3D&reserved=0<http://east04.noam.lnrm.net:8080/>", << ---- sync node "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwest01.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=EnVmRcZAAPPhMI%2F%2FV36N9x4YwV4sDa1Rny6aw9uXnK8%3D&reserved=0<http://west01.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwest02.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=MZNAiejPtpF7l5DLATgopnO%2BwX72oQMUIbs0Z5RpCa0%3D&reserved=0<http://west02.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwest03.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=HvEXoAV6gcRjEby0xJaLdipR4Da2f7dmZuTRgTBym7w%3D&reserved=0<http://west03.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwest04.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=COhHoiYysdyaMMWZp93PZo%2BEAnQxkfjG1meH6VWLYPY%3D&reserved=0<http://west04.noam.lnrm.net:8080/>" << ---- sync node ], ....... ], "hostnames_s3website": [], "master_zone": "x", "zones": [ { "id": "x", "name": "rgw-west", "endpoints": [ "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwest01.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=EnVmRcZAAPPhMI%2F%2FV36N9x4YwV4sDa1Rny6aw9uXnK8%3D&reserved=0<http://west01.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwest02.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=MZNAiejPtpF7l5DLATgopnO%2BwX72oQMUIbs0Z5RpCa0%3D&reserved=0<http://west02.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwest03.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=HvEXoAV6gcRjEby0xJaLdipR4Da2f7dmZuTRgTBym7w%3D&reserved=0<http://west03.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwest04.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=COhHoiYysdyaMMWZp93PZo%2BEAnQxkfjG1meH6VWLYPY%3D&reserved=0<http://west04.noam.lnrm.net:8080/>" << -- sync node ], "log_meta": "false", "log_data": "true", "bucket_index_max_shards": 0, "read_only": "false", "tier_type": "", "sync_from_all": "true", "sync_from": [], "redirect_zone": "" }, { "id": "x", "name": "rgw-east", "endpoints": [ "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Feast01.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=THiamzlxOwqu6iV3nG0NAdDRTN3C%2FNJPjm2F7%2FAErzQ%3D&reserved=0<http://east01.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Feast02.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=kAsghvWYkaRIdANh25QbIFjLQa%2F5Aly83TjKRfNyBT8%3D&reserved=0<http://east02.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Feast03.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=sFvzs%2Bv9v4Gk8GOMp4LAMbISDEryNI3hU8RECRzNkXg%3D&reserved=0<http://east03.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Feast04.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=9WTq4ECvAH3GLe%2FoKLsLX%2BdNf0ZXY1q1hK51iEfA%2BDM%3D&reserved=0<http://east04.noam.lnrm.net:8080/>" << -- sync node .... From: Ulrich Klein <Ulrich.Klein@ulrichklein.de> Date: Tuesday, May 16, 2023 at 10:22 AM To: Konstantin Shalygin <k0ste@k0ste.ru> Cc: Michal Strnad <michal.strnad@cesnet.cz>, ceph-users <ceph-users@ceph.io> Subject: [ceph-users] Re: Dedicated radosgw gateways [You don't often get email from ulrich.klein@ulrichklein.de. Learn why this is important at https://aka.ms/LearnAboutSenderIdentification ]
*** External email: use caution ***
Hi,
Might be a dumb question … I'm wondering how I can set those config variables in some but not all RGW processes?
I'm on a cephadm 17.2.6. On 3 nodes I have RGWs. The ones on 8080 are behind haproxy for users. the ones one 8081 I'd like for sync only.
# ceph orch ps | grep rgw rgw.max.maxvm4.lmjaef maxvm4 *:8080 running (51m) 4s ago 2h 262M - 17.2.6 d007367d0f3c 315f47a4f164 rgw.max.maxvm4.lwzxpf maxvm4 *:8081 running (51m) 4s ago 2h 199M - 17.2.6 d007367d0f3c 7ae82e5f6ef2 rgw.max.maxvm5.syxpnb maxvm5 *:8081 running (51m) 4s ago 2h 137M - 17.2.6 d007367d0f3c c0635c09ba8f rgw.max.maxvm5.wtpyfk maxvm5 *:8080 running (51m) 4s ago 2h 267M - 17.2.6 d007367d0f3c b4ad91718094 rgw.max.maxvm6.ostneb maxvm6 *:8081 running (51m) 4s ago 2h 150M - 17.2.6 d007367d0f3c 83b2af8f787a rgw.max.maxvm6.qfulra maxvm6 *:8080 running (51m) 4s ago 2h 262M - 17.2.6 d007367d0f3c 81d01bf9e21d
# ceph config show rgw.max.maxvm4.lwzxpf Error ENOENT: no config state for daemon rgw.max.maxvm4.lwzxpf
# ceph config set rgw.max.maxvm4.lwzxpf rgw_enable_lc_threads false Error EINVAL: unrecognized config target 'rgw.max.maxvm4.lwzxpf' (Not surprised)
# ceph tell rgw.max.maxvm4.lmjaef get rgw_enable_lc_threads error handling command target: local variable 'poolid' referenced before assignment
# ceph tell rgw.max.maxvm4.lmjaef set rgw_enable_lc_threads false error handling command target: local variable 'poolid' referenced before assignment
Is there any way to set the config for specific RGWs in a containerized env?
(ceph.conf doesn't work. Doesn't do anything and gets overwritten with a minimall version at "unpredictable" intervalls)
Thanks for any ideas.
Ciao, Uli
On 15. May 2023, at 14:15, Konstantin Shalygin <k0ste@k0ste.ru> wrote:
Hi,
On 15 May 2023, at 14:58, Michal Strnad <michal.strnad@cesnet.cz> wrote:
at Cephalocon 2023, it was mentioned several times that for service tasks such as data deletion via garbage collection or data replication in S3 via zoning, it is good to do them on dedicated radosgw gateways and not mix them with gateways used by users. How can this be achieved? How can we isolate these tasks? Will using dedicated keyrings instead of admin keys be sufficient? How do you operate this in your environment?
Just:
# don't put client traffic to "dedicated radosgw gateways" # disable lc/gc on "gateways used by users" via `rgw_enable_lc_threads = false` & `rgw_enable_gc_threads = false`
k _______________________________________________ ceph-users mailing list -- ceph-users@ceph.io To unsubscribe send an email to ceph-users-leave@ceph.io
ceph-users mailing list -- ceph-users@ceph.io To unsubscribe send an email to ceph-users-leave@ceph.io
________________________________ The information contained in this e-mail message is intended only for the personal and confidential use of the recipient(s) named above. This message may be an attorney-client communication and/or work product and as such is privileged and confidential. If the reader of this message is not the intended recipient or an agent responsible for delivering it to the intended recipient, you are hereby notified that you have received this document in error and that any review, dissemination, distribution, or copying of this message is strictly prohibited. If you have received this communication in error, please notify us immediately by e-mail, and delete the original message. _______________________________________________ ceph-users mailing list -- ceph-users@ceph.io To unsubscribe send an email to ceph-users-leave@ceph.io
________________________________ The information contained in this e-mail message is intended only for the personal and confidential use of the recipient(s) named above. This message may be an attorney-client communication and/or work product and as such is privileged and confidential. If the reader of this message is not the intended recipient or an agent responsible for delivering it to the intended recipient, you are hereby notified that you have received this document in error and that any review, dissemination, distribution, or copying of this message is strictly prohibited. If you have received this communication in error, please notify us immediately by e-mail, and delete the original message.
Another not sure …. For syncing, the RGWs - afaik - use the URLs set as endpoints in the zone configurations. So, if RadosGW1-4 on the West cluster are configured as endpoints then RadosGW4 on the East cluster will pull data from all of them if there is anything to be pulled. And the same in the other direction. If you want to use only the two RadosGW4 for syncing then only they should be endpoints for their cluster. For customer S3 traffic the other RGWs just have to “be there” and you can talk to them, if the network allows. No need to set them as endpoints. (Disclaimer: I haven’t looked at the code. This is just my experience :) ) What I also usually do is - using your example - put a HAProxy/keepalived (Ingress) in front of RadosGW1-3. Then I only have one customer URL per cluster and HAProxy nicely load balances the requests over the 3 RGWs. Maybe this helps? Ciao, Uli PS: And only the "ceph config set client.rgw.clb.node3.nxumka rgw_run_sync_thread false” has an effect on which RGW tries to sync. The other two are unrelated to syncing, afaict, but might just be useful to remove load from the “customer” RGWs.
On 19. May 2023, at 15:24, Tarrago, Eli (RIS-BCT) <Eli.Tarrago@lexisnexisrisk.com> wrote:
Thanks Ulrich, using `ceph config set` instead of specifying in the config file did end up working for me.
What I expected to happen with these series of changes would be: RadosGW4 would only sync with RadosGW 4 of the opposing site. Looking at the logs, I see that RadosGW4 talks to WestGW1,2,3,4 instead of just 4 and 4 exclusively. I see this same pattern of activity from both sides of the zonegroup.
Is this expected?
My expectation was RadosGW4 would exclusivly talk to RadosGW4 to remove sync traffic from client facing radosgw.

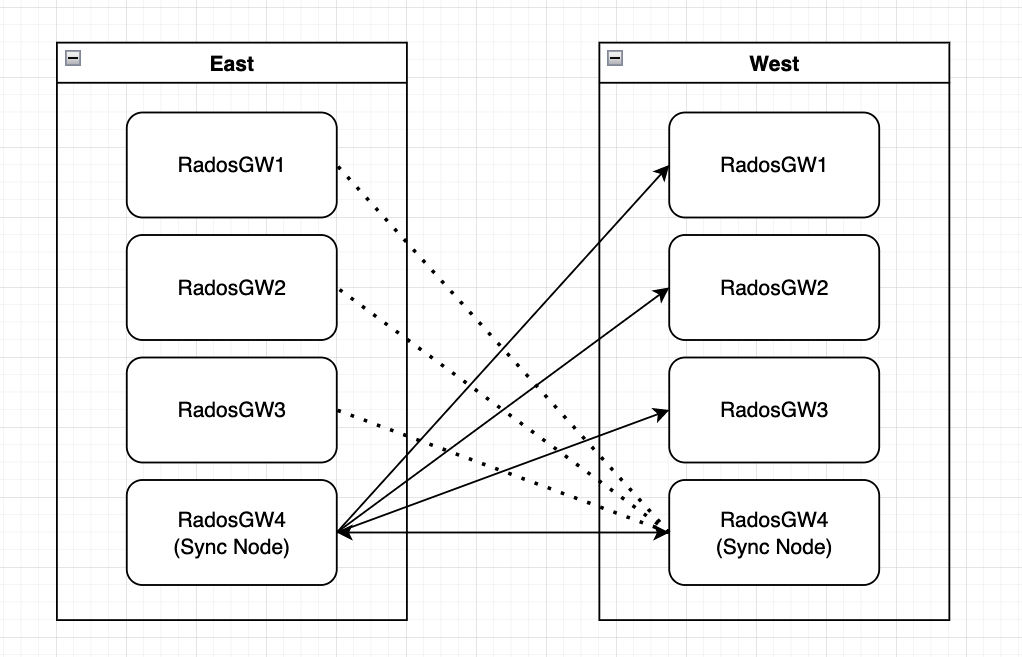

I have included a diagram below. I am unsure if pictures come thru the mailing lists
<image001.png>
From: Ulrich Klein <Ulrich.Klein@ulrichklein.de <mailto:Ulrich.Klein@ulrichklein.de>> Date: Friday, May 19, 2023 at 5:57 AM To: Tarrago, Eli (RIS-BCT) <Eli.Tarrago@lexisnexisrisk.com <mailto:Eli.Tarrago@lexisnexisrisk.com>> Cc: ceph-users <ceph-users@ceph.io <mailto:ceph-users@ceph.io>> Subject: Re: [ceph-users] Dedicated radosgw gateways
[You don't often get email from ulrich.klein@ulrichklein.de <mailto:ulrich.klein@ulrichklein.de>. Learn why this is important at https://aka.ms/LearnAboutSenderIdentification ]
*** External email: use caution ***
Not sure this will help:
I did some experiments on small test clusters with separate RGWs for "customers" and for syncing. Both are Cephadm/containerized clusters. Cluster A primary with zone A with 4 nodes, one RGW on each, node 1 and 2 behind one HAProxy/ingress URL for syncing via http://clusterA <http://clustera/>, node3 and 4 behind one HAPRoxy/ingress for customers via https://customersA <https://customersa/> Cluster B secondary with zone B with 4 nodes, one RGW on each, node 1 and 2 behind one HAProxy/ingress URL for syncing via http://clusterB <http://clusterb/>, node 3 and 4 behind one HAPRoxy/ingress for customers via https://customersB <https://customersb/>
Endpoint for cluster A is http://clusterA <http://clustera/> Endpoint for cluster B is http://clusterB <http://clusterb/>
I set in cluster B: ceph config set client.rgw.clb.node3.nxumka rgw_run_sync_thread false ceph config set client.rgw.clb.node4.xeeqqq rgw_run_sync_thread false
ceph config set client.rgw.clb.node3.nxumka rgw_enable_lc_threads false ceph config set client.rgw.clb.node4.xeeqqq rgw_enable_lc_threads false
ceph config set client.rgw.clb.node3.nxumka rgw_enable_gc_threads false ceph config set client.rgw.clb.node4.xeeqqq rgw_enable_gc_threads false
ceph orch restart rgw.customer # That's the "service" for customer RGW on nodes 3 and 4.
Now I uploaded a 32G file to cluster A (via https://customersA) <https://customersa)/> Once it's uploaded cluster B pulls it over. As the clusters are otherwise completely idle I can check the network load (via SNMP) on the nodes to see which one is doing the transfers. Without the restart cluster B seems to use a random RGW for pulling the sync data, for me actually always node 3 or 4. But after the restart it uses only nodes 1 and 2 for pulling (although I only ran the test 4 times).
So, looks like one has to restart the RGWs to pick up the configuration.
Ciao, Uli
On 18. May 2023, at 21:14, Tarrago, Eli (RIS-BCT) <Eli.Tarrago@lexisnexisrisk.com <mailto:Eli.Tarrago@lexisnexisrisk.com>> wrote:
Adding a bit more context to this thread.
I added an additional radosgw to each cluser. Radosgw 1-3 are customer facing. Radosgw #4 is dedicated to syncing
Radosgw 1-3 now have an additional lines: rgw_enable_lc_threads = False rgw_enable_gc_threads = False
Radosgw4 has the additional line: rgw_sync_obj_etag_verify = True
The logs on any of the radosgw’s appear to be identical, but here is an example log that is reflect on any of the servers. Notice the IP addresses are 1-4. Where I expect the traffic to be from only 4.
Is this to be expected?
My understanding of this thread is that this traffic would be regulated to radosgw 04.
Example Ceph Conf for a single node, this is RadosGw 01
[client.rgw.west01.rgw0] host = west01 keyring = /var/lib/ceph/radosgw/west-rgw.west01.rgw0/keyring log file = /var/log/ceph/west-rgw-west01.rgw0.log rgw frontends = beast port=8080 num_threads=500 rgw_dns_name = west01.example.com <http://west01.example.com/> rgw_max_chunk_size = 67108864 rgw_obj_stripe_size = 67108864 rgw_put_obj_min_window_size = 67108864 rgw_zone = rgw-west rgw_enable_lc_threads = False rgw_enable_gc_threads = False
------------
Example Logs:
2023-05-18T19:06:48.295+0000 7fb295f83700 1 beast: 0x7fb3e82b26f0: 10.10.10.1 - synchronization-user [18/May/2023:19:06:48.107 +0000] "GET /admin/log/?type=data&id=69&marker=1_xxxx&extra-info=true&rgwx-zonegroup=xxxxx HTTP/1.1" 200 44 - - - latency=0.188007131s 2023-05-18T19:06:48.371+0000 7fb1dd612700 1 ====== starting new request req=0x7fb3e80ae6f0 ===== 2023-05-18T19:06:48.567+0000 7fb1dd612700 1 ====== req done req=0x7fb3e80ae6f0 op status=0 http_status=200 latency=0.196007445s ====== 2023-05-18T19:06:48.567+0000 7fb1dd612700 1 beast: 0x7fb3e80ae6f0: 10.10.10.3 - synchronization-user [18/May/2023:19:06:48.371 +0000] "GET /admin/log/?type=data&id=107&marker=1_xxxx&extra-info=true&rgwx-zonegroup=xxxx HTTP/1.1" 200 44 - - - latency=0.196007445s 2023-05-18T19:06:49.023+0000 7fb290f79700 1 ====== starting new request req=0x7fb3e81b06f0 ===== 2023-05-18T19:06:49.023+0000 7fb28bf6f700 1 ====== req done req=0x7fb3e81b06f0 op status=0 http_status=200 latency=0.000000000s ====== 2023-05-18T19:06:49.023+0000 7fb28bf6f700 1 beast: 0x7fb3e81b06f0: 10.10.10.2 - synchronization-user [18/May/2023:19:06:49.023 +0000] "GET /admin/log?bucket-instance=ceph-bucketxxx%3A81&format=json&marker=00000020447.3609723.6&type=bucket-index&rgwx-zonegroup=xxx HTTP/1.1" 200 2 - - - latency=0.000000000s 2023-05-18T19:06:49.147+0000 7fb27af4d700 1 ====== starting new request req=0x7fb3e81b06f0 ===== 2023-05-18T19:06:49.151+0000 7fb27af4d700 1 ====== req done req=0x7fb3e81b06f0 op status=0 http_status=200 latency=0.004000151s ====== 2023-05-18T19:06:49.475+0000 7fb280f59700 1 beast: 0x7fb3e82316f0: 10.10.10.4 - synchronization-user [18/May/2023:19:06:49.279 +0000] "GET /admin/log/?type=data&id=58&marker=1_xxxx.1&extra-info=true&rgwx-zonegroup=xxxx HTTP/1.1" 200 312 - - - latency=0.196007445s 2023-05-18T19:06:49.987+0000 7fb27c750700 1 ====== starting new request req=0x7fb3e81b06f0 =====
radosgw-admin zonegroup get { "id": "x", "name": "eastWestceph", "api_name": "EastWestCeph", "is_master": "true", "endpoints": [ "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Feast01.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260421799%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=zR7bzEi3PxpHB8Y3vdbMYnE8wNcg9u%2F7%2BxVXktjrz1o%3D&reserved=0 <http://east01.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Feast02.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260421799%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=iPmJ4ffc6XHa%2F62vzpY4UqHoGzjBmmkEkESOW0ajed8%3D&reserved=0 <http://east02.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Feast03.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260421799%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=3SzqU3mz3PdyDdwQOsM2LQeZhfI1AWg%2FYpSXifINolg%3D&reserved=0 <http://east03.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Feast04.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=9WTq4ECvAH3GLe%2FoKLsLX%2BdNf0ZXY1q1hK51iEfA%2BDM%3D&reserved=0 <http://east04.noam.lnrm.net:8080/>", << ---- sync node "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwest01.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=EnVmRcZAAPPhMI%2F%2FV36N9x4YwV4sDa1Rny6aw9uXnK8%3D&reserved=0 <http://west01.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwest02.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=MZNAiejPtpF7l5DLATgopnO%2BwX72oQMUIbs0Z5RpCa0%3D&reserved=0 <http://west02.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwest03.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=HvEXoAV6gcRjEby0xJaLdipR4Da2f7dmZuTRgTBym7w%3D&reserved=0 <http://west03.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwest04.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=COhHoiYysdyaMMWZp93PZo%2BEAnQxkfjG1meH6VWLYPY%3D&reserved=0 <http://west04.noam.lnrm.net:8080/>" << ---- sync node ], ....... ], "hostnames_s3website": [], "master_zone": "x", "zones": [ { "id": "x", "name": "rgw-west", "endpoints": [ "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwest01.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=EnVmRcZAAPPhMI%2F%2FV36N9x4YwV4sDa1Rny6aw9uXnK8%3D&reserved=0 <http://west01.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwest02.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=MZNAiejPtpF7l5DLATgopnO%2BwX72oQMUIbs0Z5RpCa0%3D&reserved=0 <http://west02.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwest03.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=HvEXoAV6gcRjEby0xJaLdipR4Da2f7dmZuTRgTBym7w%3D&reserved=0 <http://west03.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwest04.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=COhHoiYysdyaMMWZp93PZo%2BEAnQxkfjG1meH6VWLYPY%3D&reserved=0 <http://west04.noam.lnrm.net:8080/>" << -- sync node ], "log_meta": "false", "log_data": "true", "bucket_index_max_shards": 0, "read_only": "false", "tier_type": "", "sync_from_all": "true", "sync_from": [], "redirect_zone": "" }, { "id": "x", "name": "rgw-east", "endpoints": [ "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Feast01.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=THiamzlxOwqu6iV3nG0NAdDRTN3C%2FNJPjm2F7%2FAErzQ%3D&reserved=0 <http://east01.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Feast02.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=kAsghvWYkaRIdANh25QbIFjLQa%2F5Aly83TjKRfNyBT8%3D&reserved=0 <http://east02.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Feast03.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=sFvzs%2Bv9v4Gk8GOMp4LAMbISDEryNI3hU8RECRzNkXg%3D&reserved=0 <http://east03.noam.lnrm.net:8080/>", "https://nam11.safelinks.protection.outlook.com/?url=http%3A%2F%2Feast04.noam.lnrm.net%3A8080%2F&data=05%7C01%7CEli.Tarrago%40lexisnexisrisk.com%7C97b7a834cef140d683ce08db584f64a0%7C9274ee3f94254109a27f9fb15c10675d%7C0%7C0%7C638200870260578005%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=9WTq4ECvAH3GLe%2FoKLsLX%2BdNf0ZXY1q1hK51iEfA%2BDM%3D&reserved=0 <http://east04.noam.lnrm.net:8080/>" << -- sync node .... From: Ulrich Klein <Ulrich.Klein@ulrichklein.de <mailto:Ulrich.Klein@ulrichklein.de>> Date: Tuesday, May 16, 2023 at 10:22 AM To: Konstantin Shalygin <k0ste@k0ste.ru <mailto:k0ste@k0ste.ru>> Cc: Michal Strnad <michal.strnad@cesnet.cz <mailto:michal.strnad@cesnet.cz>>, ceph-users <ceph-users@ceph.io <mailto:ceph-users@ceph.io>> Subject: [ceph-users] Re: Dedicated radosgw gateways [You don't often get email from ulrich.klein@ulrichklein.de <mailto:ulrich.klein@ulrichklein.de>. Learn why this is important at https://aka.ms/LearnAboutSenderIdentification ]
*** External email: use caution ***
Hi,
Might be a dumb question … I'm wondering how I can set those config variables in some but not all RGW processes?
I'm on a cephadm 17.2.6. On 3 nodes I have RGWs. The ones on 8080 are behind haproxy for users. the ones one 8081 I'd like for sync only.
# ceph orch ps | grep rgw rgw.max.maxvm4.lmjaef maxvm4 *:8080 running (51m) 4s ago 2h 262M - 17.2.6 d007367d0f3c 315f47a4f164 rgw.max.maxvm4.lwzxpf maxvm4 *:8081 running (51m) 4s ago 2h 199M - 17.2.6 d007367d0f3c 7ae82e5f6ef2 rgw.max.maxvm5.syxpnb maxvm5 *:8081 running (51m) 4s ago 2h 137M - 17.2.6 d007367d0f3c c0635c09ba8f rgw.max.maxvm5.wtpyfk maxvm5 *:8080 running (51m) 4s ago 2h 267M - 17.2.6 d007367d0f3c b4ad91718094 rgw.max.maxvm6.ostneb maxvm6 *:8081 running (51m) 4s ago 2h 150M - 17.2.6 d007367d0f3c 83b2af8f787a rgw.max.maxvm6.qfulra maxvm6 *:8080 running (51m) 4s ago 2h 262M - 17.2.6 d007367d0f3c 81d01bf9e21d
# ceph config show rgw.max.maxvm4.lwzxpf Error ENOENT: no config state for daemon rgw.max.maxvm4.lwzxpf
# ceph config set rgw.max.maxvm4.lwzxpf rgw_enable_lc_threads false Error EINVAL: unrecognized config target 'rgw.max.maxvm4.lwzxpf' (Not surprised)
# ceph tell rgw.max.maxvm4.lmjaef get rgw_enable_lc_threads error handling command target: local variable 'poolid' referenced before assignment
# ceph tell rgw.max.maxvm4.lmjaef set rgw_enable_lc_threads false error handling command target: local variable 'poolid' referenced before assignment
Is there any way to set the config for specific RGWs in a containerized env?
(ceph.conf doesn't work. Doesn't do anything and gets overwritten with a minimall version at "unpredictable" intervalls)
Thanks for any ideas.
Ciao, Uli
On 15. May 2023, at 14:15, Konstantin Shalygin <k0ste@k0ste.ru <mailto:k0ste@k0ste.ru>> wrote:
Hi,
On 15 May 2023, at 14:58, Michal Strnad <michal.strnad@cesnet.cz <mailto:michal.strnad@cesnet.cz>> wrote:
at Cephalocon 2023, it was mentioned several times that for service tasks such as data deletion via garbage collection or data replication in S3 via zoning, it is good to do them on dedicated radosgw gateways and not mix them with gateways used by users. How can this be achieved? How can we isolate these tasks? Will using dedicated keyrings instead of admin keys be sufficient? How do you operate this in your environment?
Just:
# don't put client traffic to "dedicated radosgw gateways" # disable lc/gc on "gateways used by users" via `rgw_enable_lc_threads = false` & `rgw_enable_gc_threads = false`
k _______________________________________________ ceph-users mailing list -- ceph-users@ceph.io <mailto:ceph-users@ceph.io> To unsubscribe send an email to ceph-users-leave@ceph.io <mailto:ceph-users-leave@ceph.io>
ceph-users mailing list -- ceph-users@ceph.io <mailto:ceph-users@ceph.io> To unsubscribe send an email to ceph-users-leave@ceph.io <mailto:ceph-users-leave@ceph.io>
________________________________ The information contained in this e-mail message is intended only for the personal and confidential use of the recipient(s) named above. This message may be an attorney-client communication and/or work product and as such is privileged and confidential. If the reader of this message is not the intended recipient or an agent responsible for delivering it to the intended recipient, you are hereby notified that you have received this document in error and that any review, dissemination, distribution, or copying of this message is strictly prohibited. If you have received this communication in error, please notify us immediately by e-mail, and delete the original message. _______________________________________________ ceph-users mailing list -- ceph-users@ceph.io <mailto:ceph-users@ceph.io> To unsubscribe send an email to ceph-users-leave@ceph.io <mailto:ceph-users-leave@ceph.io> The information contained in this e-mail message is intended only for the personal and confidential use of the recipient(s) named above. This message may be an attorney-client communication and/or work product and as such is privileged and confidential. If the reader of this message is not the intended recipient or an agent responsible for delivering it to the intended recipient, you are hereby notified that you have received this document in error and that any review, dissemination, distribution, or copying of this message is strictly prohibited. If you have received this communication in error, please notify us immediately by e-mail, and delete the original message. _______________________________________________ ceph-users mailing list -- ceph-users@ceph.io <mailto:ceph-users@ceph.io> To unsubscribe send an email to ceph-users-leave@ceph.io <mailto:ceph-users-leave@ceph.io>
participants (6)
-
Jonas Nemeiksis
-
Konstantin Shalygin
-
Michal Strnad
-
Rok Jaklič
-
Tarrago, Eli (RIS-BCT)
-
Ulrich Klein
